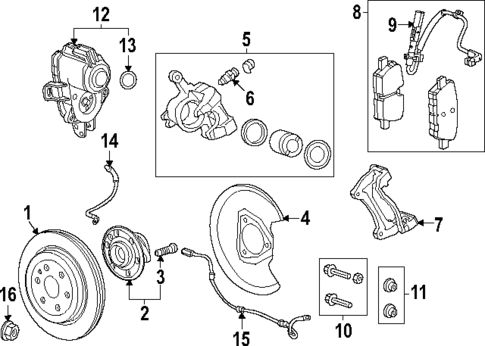

Brake Components for 2025 Chevrolet Equinox EV
No.
Part # / Description / Price
Price
1
MSRP $181.16
$101.60
2
Hub Assembly
GM
GM Positions: Right
Notes: PARTS: Part has related component that cannot be reused/reinstalled; mount bolt.
Description: Awd. Equinox EV.
MSRP $124.36
$69.02
MSRP $124.36
$69.02
3
Multi-Purpose Bolt GM
GM Positions: Left
Notes: PARTS: Part included with hub assembly.
Description: Awd. Special Ride & Handling Suspension. Performance & Handling Suspension. Heavy Duty Brakes. To Knuckle. STS-v. 2wd. Brembo Brakes. This GM Genuine Part is designed, engineered, and tested to rigorous standards and is backed by General Motors
4
Splash Shield GM
GM Positions: Left
Notes: PARTS: Part has related component that cannot be reused/reinstalled; mount bolt.
Description: Awd. Equinox EV. Left. To 04/29/2024. Fwd.
MSRP $18.96
$11.38
MSRP $18.96
$11.38
4
Splash Shield GM
GM Positions: Right
Notes: PARTS: Part has related component that cannot be reused/reinstalled; mount bolt.
Description: Awd. Equinox EV. Right. To 04/29/2024. Fwd.
MSRP $18.96
$11.38
MSRP $18.96
$11.38
5
Caliper GM
GM Positions: Left
Description: Awd. Traverse. Left. Fwd. Acadia. Equinox EV.
MSRP $183.21
$101.68
MSRP $183.21
$101.68
5
Caliper GM
GM Positions: Right
Description: Awd. Traverse. Right. Fwd. Acadia. Equinox EV.
MSRP $183.20
$101.68
MSRP $183.20
$101.68
6
Rear Disc Brake Bleeder Valve GM
GM Positions: Left
Notes: PARTS: Part included with caliper.
Description: This GM Genuine Part is designed, engineered, and tested to rigorous standards and is backed by General Motors
MSRP $9.40
$5.64
MSRP $9.40
$5.64
7
MSRP $128.60
$71.37
8
MSRP $222.99
$122.64
8
MSRP $194.47
$107.94
10
MSRP $16.94
$10.16
11
Rear Brake Caliper Guide Pin Seal GM
GM Positions: Right
Description: Incl.Disc Brake Caliper Guide Pin Boot. This GM Genuine Part is designed, engineered, and tested to rigorous standards and is backed by General Motors
MSRP $9.40
$5.64
MSRP $9.40
$5.64
12
Prk Brake Actuator GM
GM Positions: Right
Description: Awd. Traverse. Right. Fwd. Acadia. Equinox EV.
MSRP $176.80
$98.12
MSRP $176.80
$98.12
12
Prk Brake Actuator GM
GM Positions: Left
Description: Awd. Traverse. Left. Fwd. Acadia. Equinox EV.
MSRP $176.20
$98.12
MSRP $176.20
$98.12
14
Brake Hose GM
GM Positions: Left
Notes: PARTS: Part has related component that cannot be reused/reinstalled; washer
Description: Awd, from 05/29/2023. Equinox EV. Left. From 05/29/2024.
MSRP $44.47
$25.34
MSRP $44.47
$25.34
15
F (S)Sensor GM
GM Positions: Left
Description: Blazer EV. Left. LYRIQ. Equinox EV. Awd. Fwd. Incl.ABS Wheel Speed Sensor Wire Harness.
MSRP $38.60
$23.16
MSRP $38.60
$23.16
15
ABS Wheel Speed Sensor GM
GM Positions: Right
Description: Blazer EV. Right. LYRIQ. Equinox EV. Awd. Fwd. Incl.ABS Wheel Speed Sensor Wire Harness.
MSRP $24.10
$14.46
MSRP $24.10
$14.46
16
Multi-Purpose Nut GM
GM Positions: Right
Notes: PARTS: Part cannot be reused/reinstalled.
Description: This GM Genuine Part is designed, engineered, and tested to rigorous standards and is backed by General Motors
MSRP $3.63
$2.48
MSRP $3.63
$2.48
